Overview
Electric Strut Servery Window
COMMERCIAL SERIES – 125mm FRAME
Servery Windows enhance a home’s indoor and outdoor connection for effortless entertaining between living spaces.
Technical Specifications
Electric Strut Servery Windows are endlessly customisable, offering stunning architectural designs and outstanding features.
Rylock Commercial Series Electric Strut Servery Windows feature a superior strut mechanism and an electric actuator that guides the sash with an effortless 90° (+/- 5°) range of motion, promoting a sense of connection between indoor and outdoor spaces. Unlike sliding or bifold configurations, the Electric Strut Servery offers an unobstructed view when closed, and when opened, at the touch of a button, clears the bench space entirely. Safeguarding the product’s functionality, Rylock has a comprehensive installation service*, and operational safety features include a regulated speed and manual final close.
Electric Strut Servery Windows are glazed in accordance with AS 1288 Glass in Buildings, with Grade A Safety Laminated Low-e Double Glazing (Argon Fill) and are available with a sill or no sill options. Products are powder coated in-house from a selection of 30 standard colours and textures and tested by CSIRO for durability, (whilst the actuaries are black only). Note: * A qualified electrician is required to provide a 240v outlet directly above or below the product.
EFFORTLESS RANGE OF MOTION
Robust struts and an electric actuator guide the product in a full 90° range of motion.
BENCH SPACE CLEAR OF ALL OBSTRUCTIONS
Specify a no sill or sill option (with a 50mm rebate) for no visual impediment and vast openings.
HIGH PERFORMANCE DOUBLE GLAZING
IGU standard specification is Grade A Safety Laminated Low-e Double Glazing (Argon Fill).
SASH STABILISATION
Stainless steel Fixing Plates safeguard the sash squareness and durability at the largest of sizes.
HARDWARE
Strength at the largest of sizes
Superior Electric Strut and Actuator hardware guides the product sash for controlled ventilation at the touch of a button.
Electric strut and actuator hardware is available in black only, see carousel for hardware and example powder coat frame contrasting colours.
HARDWARE
Heavy Duty Hinges
Heavy-duty stainless steel Austyle™ Hinges are 150mm x 88mm x 3mm with 4 sealed bearings.
Austyle™ Hinges are available in black, satin-brushed stainless steel and white.

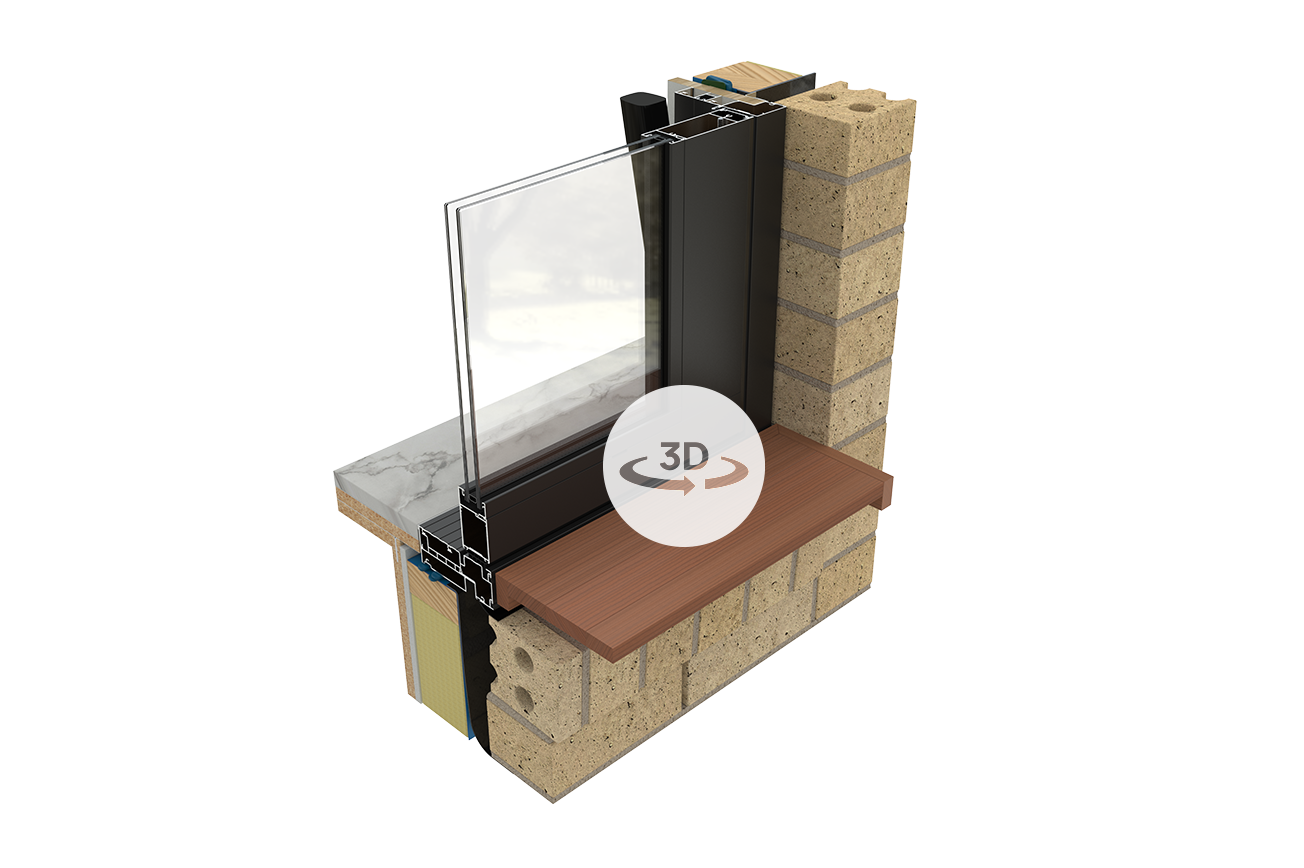

INSTALLATION GUIDE
The most vital aspect of correct function – is correct installation.
It is recommended that the manufacturer’s specification is always followed as improper installation can lead to air infiltration, moisture and poor overall performance.
Rylock has detailed Typical Building-In Details for four common wall types to assist in the best practice installation of product:
- Hebel PowerPanel
- Brick Veneer; and
Reveal Type & Depth
A product’s reveal type and depth can be customised to suit various building materials, to achieve a particular architectural style and deliver ultimate customisation.
PRIMED TIMBER REVEAL
A pre-primed in-line timber reveal for ease of installation is ready for painting. Architrave supplied by other
HARDWOOD REVEAL
Select grade Hardwood in-line timber reveal for ease of installation is ready to varnish. Architrave supplied by other
PLASTER REVEAL OFFSET
Common in modern housing construction, products are fitted with a 1.6mm spacer for installation of the EzyReveal™ system.
REVEAL EQUALISER
A versatile solution with concealed fixing pocket in powder coated finish to the internal surface of the frame.
TECHNICAL DOWNLOADS
Rylock invests significant resources in creating technical documents for all products.
Download .dwg and .pdf file format Cross-Section documents for the Commercial Series Electric Strut Servery Window, below:
View more Servery Window products
Experience quality, style and performance at your nearest showroom.
Enhance your home with Rylock’s expertly crafted double glazed windows and doors, designed for superior thermal comfort, noise reduction and security.
Double Glazed Servery Windows FAQs
Rylock’s double glazed servery windows are an investment in quality, functionality and aesthetics.
With over 40 years of expertise, we are committed to providing Australian homes with cutting-edge solutions that meet their needs. Explore our range and transform your space today.
Servery windows are a versatile and energy-efficient window solution for entertaining in your home.
Often used to connect food preparation spaces or entertaining areas, these windows make serving food and drinks to an outdoor space easy.
Featuring two layers of glass with an insulating gap, double-glazed windows help maintain indoor temperatures while allowing for an abundance of natural light and ventilation.
Your options for double-glazed servery windows include:
- Electric strut servery windows, which raise the window up and out of the way like an awning.
- Bifold windows, which feature pull handles and flush-bolt compression latches, allowing you to fold windows out of the way to create a pass-through area.
- Sliding servery windows, which slide to one side, freeing up space for you to hand food and other items to guests.
Rylock’s double glazed servery windows are precision-engineered to combine durability and functionality with aesthetic appeal, making them an excellent choice for your home
Learn more about Rylock’s extensive Window Solutions to explore more double glazed solutions.
Yes, double glazed aluminium servery windows are highly energy-efficient. By incorporating two panes of glass separated by an insulated argon gas , these windows reduce the rate of heat transfer, keeping your home warmer in winter and cooler in summer when the windows are closed. This not only enhances comfort but also lowers energy bills by reducing the need for artificial heating and cooling systems.
No matter where you live in Australia, energy-efficient servery windows help to maintain a consistent indoor temperature, offering a sustainable and cost-effective solution.
Whether you choose strut-style servery, bifold or sliding windows, choosing a double-glazed option gives you a more energy efficient home to increase the livability and comfort of your unique space.
Take a look at Rylock’s Energy Efficiency Resources to understand the insulation benefits of double-glazed windows.
Rylock offers double glazed servery windows to suit different architectural needs:
- Electric strut servery windows: A modern option that swings outward and stays in place using electric struts, providing a sleek and functional design.
- Bifold servery windows: These open fully, creating a large pass-through area, perfect for entertaining.
- Sliding servery windows: With a slim profile that is ideal for tighter spaces, these windows slide horizontally for easy operation.
Each style offers unique benefits while maintaining the same high standards of energy efficiency and durability.
Learn more about Rylock’s window and door options via our Double Glazed Product page.
Rylock’s double glazed aluminium servery windows allow you to make security a priority at your home
These Australian-manufactured windows are equipped with robust locking systems and high-strength aluminium frames, ensuring protection against forced entry. Double glazing is a smart feature of secure servery windows because all Rylock products feature Grade ‘A’ Safety glass, which makes it exceptionally difficult to break.
Rylock’s custom servery windows can be tailored to complement the unique design of your home. Options include:
- A variety of frame colours and textures to match your preferred aesthetic.
- Sizes and configurations suited to your architectural style..
- Electric strut servery, bifold servery or sliding servery configurations.
- Heavy duty hinges and stainless steel fixing plates on the electric strut servery safeguard squareness and durability, even for large products
Our premium products and range of options (electric strut, bifold or sliding windows) ensure your kitchen servery window enhances your space while meeting your practical needs.
Explore your options for aluminium servery window frame colours & textures.
Maintaining servery windows is simple:
- Clean the glass regularly with a non-abrasive solution to maintain clarity.
- Check and lubricate moving parts like hinges or sliders for smooth operation.
- Inspect seals to ensure they remain intact, preventing drafts and moisture ingress.
Regardless of the product type and configuration, your servery window requires routine care to help extend the lifespan of your aluminium servery windows to keep them looking their best.
For additional guidance, visit our Product Care page.
Double glazed servery windows are particularly popular in kitchens because they create a functional pass-through between indoor preparation areas and outdoor dining spaces. This makes them ideal for entertaining or everyday convenience.
Kitchen servery windows come in flexible options including electric strut servery windows, bifold servery windows or sliding servery windows, offering flexibility based on the available space and desired style.
Explore examples of double glazed windows and servery windows in Australian properties at Rylock Projects.
Proper installation of your electric strut servery window is critical for optimal performance. Rylock provides a comprehensive installation service, conducted by trained professional installers.
For bifold and sliding servery windows, Rylock provides a range of window installation resources to help ensure efficient double glazed window installation.
For more details, visit our Installation Guide.
Indoor-outdoor servery windows are designed to create a seamless connection between interior and exterior spaces.
Whether you are hosting a party or enjoying a family barbecue, these windows make serving effortless. They can also be left open at any time to promote airflow.
Aesthetically appealing and easy to operate, electric strut, sliding or bifold kitchen servery windows enhance the overall functionality and aesthetic of your home.
Rylock are leading servery window manufacturers. Browse our previous projects for inspiration.
The cost of double glazed servery windows varies depending on the size, type and configuration.
For a price estimate that is tailored to your specifications, contact the leading double glazed servery window suppliers at Rylock to request a Quote.
