Servery Window
COMMERCIAL SERIES – 125mm FRAME
Servery Windows enhance a home’s indoor and outdoor connection for effortless entertaining when passing food and drinks between living spaces.
Technical Specifications
Servery Windows are endlessly customisable, offering stunning architectural designs and outstanding features.
Rylock Commercial Series Servery Windows promote ventilation and draw the outside in, for a sense of connection when entertaining between indoor and outdoor spaces. The (openable) sash range of movement is controlled by a black flush pull handle and a stainless steel and rubber panel stop, which ensures there is no damage to the frame when the sash is opened. Sash seals provide resistance against air and water infiltration for exceptional results in AS 2047 Windows and External Glazed Doors compliance testing. Servery Windows are glazed in accordance with AS 1288 Glass in Buildings and whilst a large range of options are available, all products are glazed with Grade A Safety Toughened Low-e Double Glazing (Argon Fill) as a standard specification.
FLUSH PULL HANDLE WITH KEY LOCK
Flush Pull Handle controls sash movement and Sash Seals minimise water and air infiltration.
PRODUCT FRAME PROTECTION
Stainless Steel and Rubber Panel Stop ensures no damage to the frame when the sash is opened.
EXTRUDED FLYSCREEN WITH CORNER STAKE
Standard inclusion Extruded Flyscreens with hidden Corner Stake, plus various mesh and Barrier Screens options.
HIGH PERFORMANCE DOUBLE GLAZING
IGU standard specification is Grade A Safety Toughened Low-e Double Glazing (Argon Fill).
INSTALLATION GUIDE
The most vital aspect of correct function – is correct installation.
It is recommended that the manufacturer’s specification is always followed as improper installation can lead to air infiltration, moisture and poor overall performance.

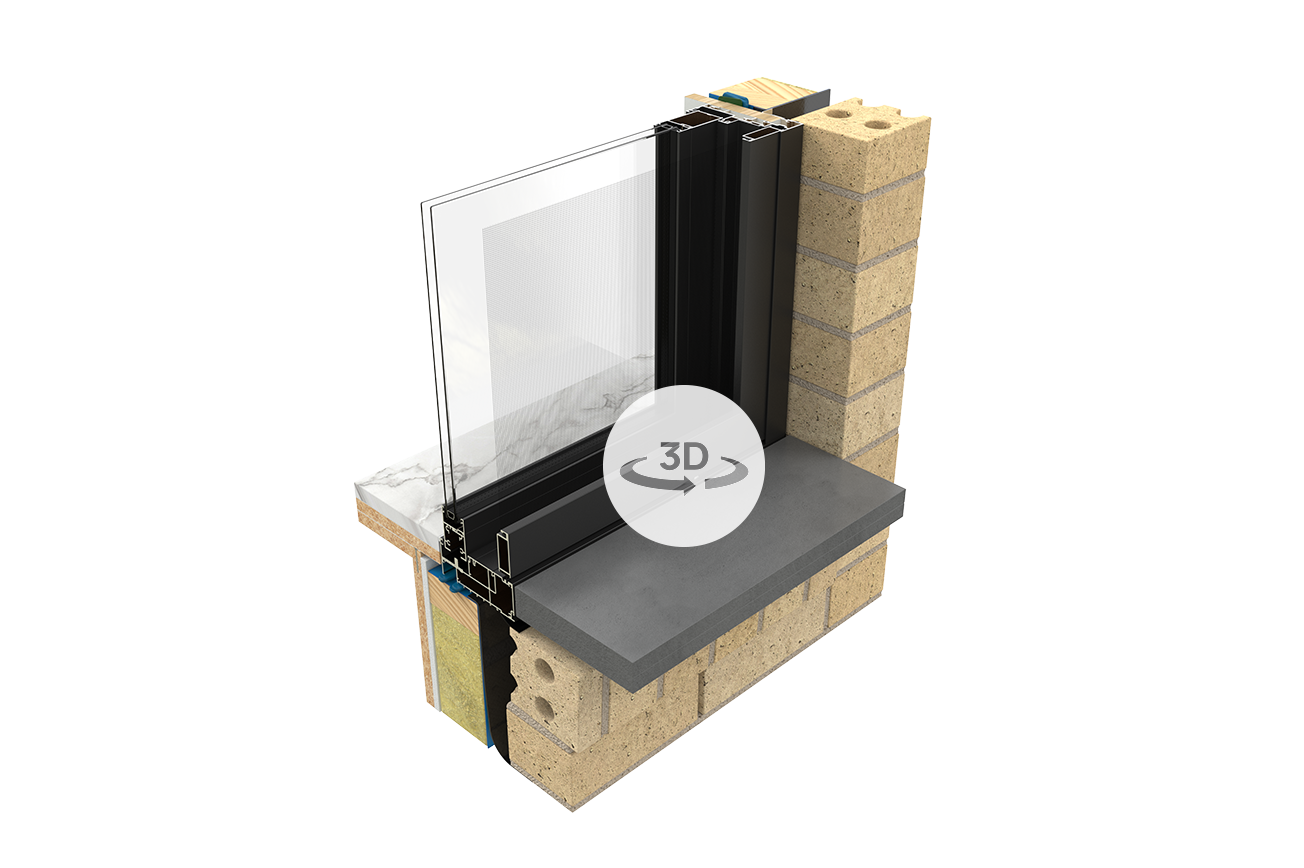

Rylock has detailed Typical Building-In Details for four common wall types to assist in the best practice installation of product:
- Linea Board
- Hebel PowerPanel
- Brick Veneer; and
- Double Brick
Reveal Type & Depth
A product’s reveal type and depth can be customised to suit various building materials, to achieve a particular architectural style and deliver ultimate customisation.
PRIMED TIMBER REVEAL
A pre-primed in-line timber reveal for ease of installation is ready for painting. Architrave supplied by other
HARDWOOD REVEAL
Select grade Hardwood in-line timber reveal for ease of installation is ready to varnish. Architrave supplied by other
PLASTER REVEAL OFFSET
Common in modern housing construction, products are fitted with a 1.6mm spacer for installation of the EzyReveal™ system.
REVEAL EQUALISER
A versatile solution with concealed fixing pocket in powder coated finish to the internal surface of the frame.
TECHNICAL DOWNLOADS
Rylock invests significant resources in creating technical documents for all products.
Download .dwg and .pdf file format Cross-Section documents for the Commercial Series Sliding Servery Window, below:
