Overview

Bifold Door

COMMERCIAL SERIES – 125mm FRAME

Bifold Doors provide a large opening with panels that fold back to blend the transition between outside and in, ideal for alfresco entertaining.

Technical Specifications

Max Product Height
3050mm
Max Product Width
6000mm
Max Panel Height
2929mm ⁽¹⁾
Max Panel Width
1000mm ⁽¹⁾

Glazing Capacity
4mm - 25mm

Wind Rating
N1 - N3

Water Resistance
Non-compliant
⁽¹⁾ Sash / panel height and width are relative measures and must comply with maximum area and mass limitations.

Uw Value
4.1 ⁽²⁾
SHGCw Value
0.32 - 0.50 ⁽²⁾
⁽²⁾ Energy results are product and size specific. As product sizes reduce, energy values increase and are determined by the low-e double glazing solutions specified for your project. Visit rylock.com.au/resources/wers-results/ for information.
Access & Mobility solutions assist people with disability, seniors and young families. Features such as rebated sill allow for zero threshold installation for ease of egress and compliance to AS1428.1.
Noise solutions are available in specialist glazings or as a secondary glazing system to help minimise the entry of intrusive noise into the home.
Rylock security and barrier screen solutions can be fitted to Rylock products to help keep your home safe and aid in fall prevention.
Information Sheet

Rylock Commercial Series Bifold Doors are a bold architectural statement, available in 2, 3, 4, 5 and 6 panel configurations. Designed for seamless indoor-outdoor access, the 50mm sill can be rebated for a “zero threshold” installation, which is compliant with AS1428 Design for Access and Mobility. The product’s heavy duty extrusions are assembled with stainless steel fixing plates to maintain each panel’s squareness; and fitted with premium Centor™ bottom-rolling hardware for smooth operation and durability.

Discreet pull handles between each panel assist in engaging flush-bolt compression latches for secure locking, ensuring resistance to air and water infiltration. Bifold Doors are glazed in accordance with AS 1288 Glass in Buildings, and whilst a large range of options is available, all products are glazed with Grade A Safety Toughened Low-e Double Glazing (Argon Fill) as a standard specification. Products are powder coated from a selection of 30 standard colours and textures and tested by the CSIRO for durability.

CS_BFD_FEATURES_FLATSILL_MONUMENT-346x230

50mm Sill can be rebated for “zero threshold” installation, making it an ideal assisted living solution.

CS_BFD_FEATURES_FIXINGPLATE_MONUMENT-346x230

Stainless steel Fixing Plates safe-guard each panel’s squareness and durability at the largest of sizes.

CS_BFD_FEATURES_SILLROLLER_MONUMENT-346x230

Stainless steel Centor™ Bottom Rolling ensures smooth operation with concealed floor guide channel.

CS_BFD_FEATURES_IGU_MONUMENT-346x230

IGU standard specification is Grade A Safety Toughened Low-e Double Glazing (Argon Fill).

CS_BFD_HDW_HANDLES2_BLK-652x434
CS_BFD_HDW_HANDLES2_SLV-652x434
CS_BFD_HDW_HANDLES2_WHT-652x434

HARDWARE

High performance hardware solutions

Rylock offers a selection of high performance hardware solutions for Commercial Series Bifolds, with a range of standard inclusion options:

The *myLock Latch w/ DDA Lever (pictured right of image) features a contemporary design with comfort hold lever and surface mounted keylock and snib, available in 3 colours: black, white and satin-brushed stainless steel.

The *myLock Latch w/ Tapered Lever (pictured left of image) features a contemporary design with clean lines and a surface mounted keylock and snib, available in 3 colours: black, white and stain-brushed stainless steel.

*Standard inclusion hardware options

CS_BFD_HDW_CENTOR_BLK-652x434
CS_BFD_HDW_CENTOR_SLV-652x434
CS_BFD_HDW_CENTOR_WHT-652x434

Superior product seal

Rylock Bifold Doors feature Centor™ Pull Handles, (pictured right of image). Manufactured in architectural-grade stainless steel, they are fitted between panels to assist when flush-bolts are engaged.
Available in satin-brushed stainless steel only.

Rylock Bifold Doors feature Flush-bolt Compression Latches, (pictured left of image) fitted to the top and bottom of all slave panels to secure the product in place when closed. Designed for durability and ease of use, they are available in stain-brushed stainless steel only.

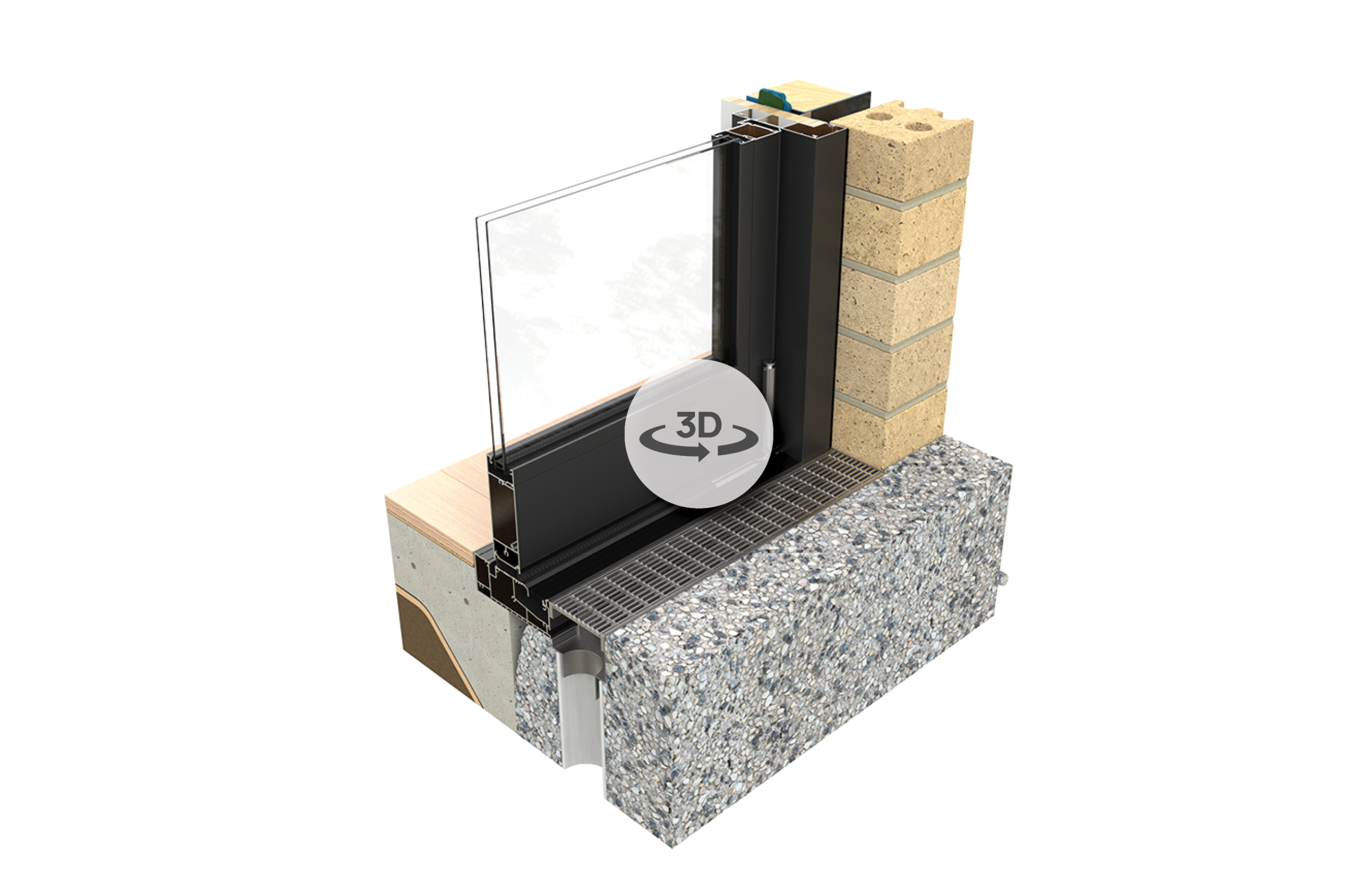

Architectural Aluminium Bifold Door Interactive 3D Render

INSTALLATION GUIDE

It is recommended that the manufacturer’s specification is always followed as improper installation can lead to air infiltration, moisture and poor overall performance.

Rylock has detailed Typical Building-In Details for four common wall types to assist in the best practice installation of product:

  • Linea Board
  • Hebel PowerPanel
  • Brick Veneer; and
  • Double Brick

INSTALLATION guide

Reveal Type & Depth

A product’s reveal type and depth can be customised to suit various building materials, to achieve a particular architectural style and deliver ultimate customisation.

2.2.4 Bifold Door - Commercial Series

A pre-primed in-line timber reveal for ease of installation is ready for painting. Architrave supplied by other

2.2.4 Bifold Door - Commercial Series

Select grade Hardwood in-line timber reveal for ease of installation is ready to varnish. Architrave supplied by other

2.2.4 Bifold Door - Commercial Series

Common in modern housing construction, products are fitted with a 1.6mm spacer for installation of the EzyReveal™ system.

2.2.4 Bifold Door - Commercial Series

A versatile solution with concealed fixing pocket in powder coated finish to the internal surface of the frame.

TECHNICAL DOWNLOADS

Rylock invests significant resources in creating technical documents for all products.

Download .dwg and .pdf file format Cross-Section documents for the Commercial Series Bifold Door, below:

2.2.4 Bifold Door - Commercial Series

Elegance Meets Flexibility With Rylock Bifold Doors

Open your home to new possibilities

Renovating your home or building from scratch? Want a seamless transition from inside to out? Glass bifold doors are the perfect solution.

Timeless and versatile, these foldable doors provide:

  • An abundance of natural light for bright and welcoming living areas
  • Improved ventilation to draw in the afternoon breeze
  • Indoor/outdoor flow so your home feels spacious and open
  • Uninterrupted views of your garden, pool or patio

Aluminium Bifold Doors: Make Your Home Feel Like a Luxury Resort

Add a touch of refined sophistication with stunning folding doors that come in your choice of 30 standard colours or textures and complement any architectural style.

Rylock’s fully customisable bifold doors are made to match your space, lifestyle and preferences.

Rylock Bifold Door_03

Easy to Use and Built to Last

Crafted from the highest quality materials, Rylock’s weather-resistant and low-maintenance bifold doors are exceptionally strong but feel feather-light as you slide them into place.

Rylock foldable doors last for longer because they include:

  • Superior Centor™ bottom-rolling mechanisms for smooth functionality
  • Cleverly designed dust covers to protect inner hardware

Enhance Your Space with Glass Bifold/Accordion Doors

Bifolds are also known as foldable doors or accordion doors. They are a fantastic choice if you want the flexibility to transform your living room from a cosy retreat to an entertainer’s delight.

Customisable configurations allow you to fold the doors right back for seamless indoor/outdoor living or use one door for quick access to outside areas.

Choosing the Right Bifold Doors for Your Home

Our consultants will help you select which bifold doors are suitable for your home and talk to you about the following:

Rylock Bifold Door_01

Number of doors

The width of your space will determine how many accordion door panels you need.

Rylock Bifold Door_08

Material

We recommend aluminium bifold doors. This material suits most aesthetic preferences and is lightweight, with minimal maintenance required.

Rylock Bifold Door_07

Glazing

Double glazing gives you enhanced insulation for improved energy efficiency and the added benefit of noise reduction.

Rylock Bifold Door_01

Hardware and finishes

Choose handles and finishes for your foldable doors that complement the look of your home.

Rylock Bifold Door_05

Security features

Bifold Doors from Rylock can be securely locked for your security and peace of mind.

Comparing Bifold Doors: Materials, Styles and Features

Rylock offers a range of aluminium bifold door configurations to suit your space and preferences:

  • Configuration: Select from 2, 3, 4, 5 or 6-panel configurations.
  • Features: Customise your foldable doors with clear or obscure glass and a range of frame colours.
  • Energy Efficiency: Rylock folding doors come with high-performance low-e double glazing as the standard specification. You can also choose from a range of other ultra-high-performance options for a more sustainable solution.

FOR BUILDERS & ARCHITECTS

View specifications and technical documents for Rylock bifolding doors.
SEE MORE

FOR HOMEOWNERS

Are glass bifold doors right for your space? Be inspired by our previous projects.
See more

Experience quality, style and performance at your nearest showroom.

Enhance your home with Rylock’s expertly crafted double glazed windows and doors, designed for superior thermal comfort, noise reduction and security.

FAQ:
Bifold and Folding Doors

Why should I choose aluminium bifold doors?

Aluminium bifold doors are an excellent choice in almost any Australian home for the following reasons:

  • Durability: Rylock products are hand powder coated in-house, tested by CSIRO for durability and can withstand Australia’s harsh climate.
  • Low maintenance: Product care with Rylock aluminium bifold doors is easy. Smart design features such as dust covers and quality hardware ensure they require minimal upkeep and are quick & easy to clean.
  • Strength and security:  Rylock bifold doors provide a strong barrier against intruders.
  • Slim profiles: Maximise your glass area and treat yourself to unobstructed views. Bifold doors also give you greater floor space than sliding doors because they ‘stack’ to one side.
  • Design flexibility: Your bifold doors are precision-engineered and are customised to suit your project, with a variety of panel configurations that open back against the door frame in different ways.
How do double glazed concertina doors improve energy efficiency?

New homes in Australia must include design features to keep them cooler in summer and warmer in winter.

Double glazed concertina doors help meet specific criteria by providing enhanced insulation through two layers of glass with a gap between them. This acts to reduce the transfer of heat and the result is a home that feels warmer in winter and cooler in summer.

On cool days, the concertina folding style creates a wide open space, allowing for superior ventilation. The result is lower energy bills as well as a strikingly beautiful home.

Double glazed concertina doors improve energy efficiency in your home by:

  • Reducing heat transfer: Two layers of glass create an insulating barrier, minimising heat loss in winter and reducing solar heat gain in summer.
  • Minimising draughts: Rylock’s double glazed concertina doors have tight seals around the door panels to reduce draughts.
  • Reducing energy bills: By maintaining a more comfortable indoor temperature, double glazed concertina bifold doors will help you save on heating and cooling costs – making them a sustainable upgrade or addition to your home
Can bifold doors be used as internal room dividers?

Yes, bifold doors can be an elegant and functional way to divide internal spaces. Create a flexible space within your home and turn two rooms into one when you’re entertaining or need extra room.

Are bifold doors secure?

Rylock’s glass bifold doors are designed with security in mind. They feature multi-point locking systems and robust construction to deter intruders. Whilst Rylock offers high performance Grade ‘A’ Safety Toughened Low-e glass as a standard specification, you can also select Grade ‘A’ Laminated glass for additional peace of mind.

How many panels will I need for my folding doors?

Configuration of your accordion doors / bifold doors will depend on the space and your personal preferences. Our consultants will walk you through your options in detail.

How heavy are bifold doors?

Ease of use is supported by Superior Centor™ top and bottom-rolling hardware, and pull handles.

Can I replace my existing French doors with glass bifolding doors?

Rylock bifold doors are generally suitable for door and window replacement projects. The advantage is a seamless flow from inside to out, plus the energy-saving benefits of double-glazing. Contact us to explore your options and arrange a quote with an Authorised RylockCare Installer.

Does Rylock install bifolding doors?

We provide a range of best practice technical bifold doors installation guides for your installers.

What are the advantages of aluminium bifold doors?

Aluminium bifold doors are lightweight, easy to use and long lasting. They create an impressive sense of space in a matter of moments.

Make the most of your home’s views with full glass bifold doors that maximise natural light and are incredibly easy to open and close.

Rylock products offer high performance low-e double-glazing as a standard specification, which supports a more comfortable and sustainable home all year round.

Finally, your folding doors have secure locking features for better peace of mind.

Choose the Best Bifold and Folding Doors

High-performance glass bifold doors will transform your living space and give you the benefit of an abundance of natural light, seamless indoor-outdoor transitions and enhanced energy efficiency.

If you want the best in terms of looks, durability and performance, choose Rylock.

Ready to open up your home to new possibilities? Explore Rylock’s range of bifold doors today or get in touch with us.
