Overview
Hinged Door
COMMERCIAL SERIES – 125mm FRAME
Hinged Doors can open inwards or out and be displayed as a single panel or French Door configuration, for ultimate customisation.
Technical Specifications
Rylock Commercial Series Hinged Doors are endlessly customisable, offering stunning architectural designs and many outstanding features.
The Commercial Series Hinged Door features a 50mm sill that can be rebated for “zero threshold” installation. The product’s heavy duty extrusions are assembled with stainless steel fixing plates to maintain the panel’s squareness and durability. Quality seals along the perimeter of the frame and panel ensure resistance against air and water infiltration for compliance with AS 2047 Windows and External Glazed Doors.
Frame only options allow a timber door panel to be fitted, where the frame can be coupled to other Commercial Series products with a 125mm product depth. Hinged Doors are glazed in accordance with AS 1288 Glass in Buildings and whilst a large range of options are available, all products are glazed with Grade A Safety Toughened Low-e Double Glazing (Argon Fill) as a standard specification. Commercial Series Hinged Doors are fitted with Austyle™ DDA Compliant or Tapered Lever architectural hardware, available in black, white and satin-brushed stainless steel. Products are powder coated in-house from a selection of 30 standard colours and textures, tested by the CSIRO for durability.
“ZERO THRESHOLD” INSTALLATION
50mm Sill can be rebated for “zero threshold” installation, making it an ideal assisted living solution.
FULLY OPENABLE DOOR PANELS
Heavy duty Hinges allow the panel to rotate 180 degrees, when the frame is aligned with the exterior of the building.
PANEL STABILISATION
Stainless steel Fixing Plates safe-guard the panel’s squareness and durability at the largest of sizes.
HIGH PERFORMANCE DOUBLE GLAZING
IGU standard specification is Grade A Safety Toughened Low-e Double Glazing (Argon Fill).

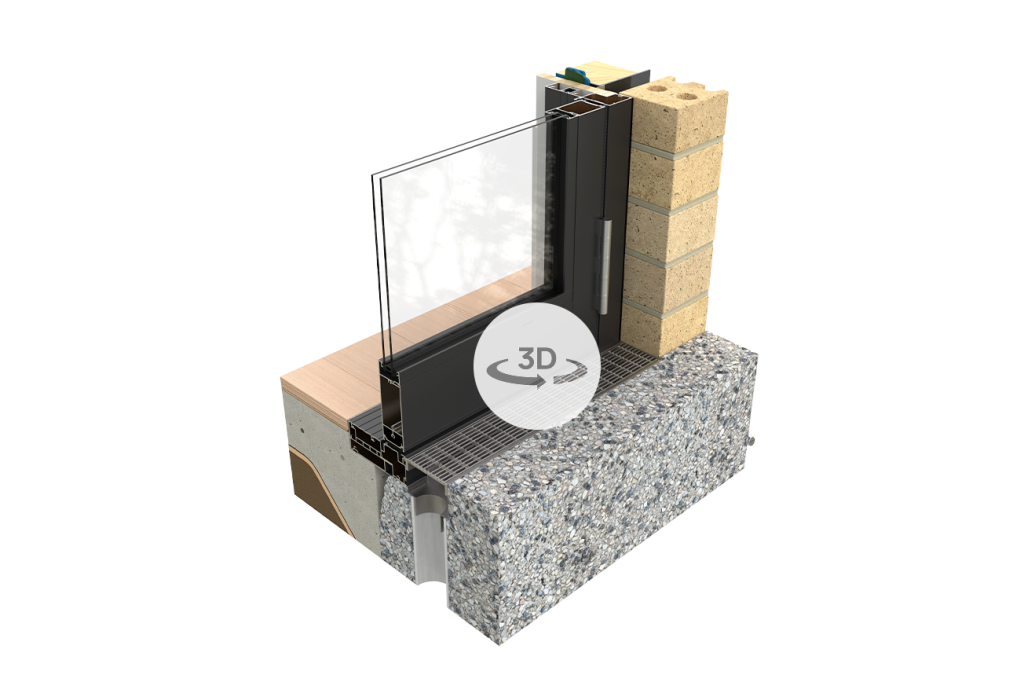

INSTALLATION GUIDE
The most vital aspect of correct function – is correct installation.
It is recommended that the manufacturer’s specification is always followed as improper installation can lead to air infiltration, moisture and poor overall performance.
Rylock has detailed Typical Building-In Details for four common wall types to assist in the best practice installation of product:
- Linea Board
- Hebel PowerPanel
- Brick Veneer; and
- Double Brick
Reveal Type & Depth
A product’s reveal type and depth can be customised to suit various building materials, to achieve a particular architectural style and deliver ultimate customisation.
PRIMED TIMBER REVEAL
A pre-primed in-line timber reveal for ease of installation is ready for painting. Architrave supplied by other
HARDWOOD REVEAL
Select grade Hardwood in-line timber reveal for ease of installation is ready to varnish. Architrave supplied by other
PLASTER REVEAL OFFSET
Common in modern housing construction, products are fitted with a 1.6mm spacer for installation of the EzyReveal™ system.
REVEAL EQUALISER
A versatile solution with concealed fixing pocket in powder coated finish to the internal surface of the frame.
TECHNICAL DOWNLOADS
Rylock invests significant resources in creating technical documents for all products.
Download .dwg and .pdf file format Cross-Section documents for the Commercial Series Hinged Door, below:
Benefits of Double Glazed Hinged Doors
From grand French doors to versatile hinged glass doors, Rylock offers durable aluminium hinged door solutions that are easy to install.
Choose our premium doors for:
Enhanced Curb Appeal
Double entrance doors create a bold, sophisticated statement for any entryway. Aluminium French doors, with their refined frames and generous glass panels, add an elegant touch to both classic and contemporary homes.
Rylock’s customisation options allow you to tailor your doors to match your architectural aesthetic, ensuring seamless flow and a luxurious look.
See how Rylock doors enhance homes in our project gallery.
Energy Efficiency and Insulation
Double glazed, energy efficient hinged doors act as an insulation barrier, significantly reducing heat transfer through the glass.
The advanced technology of insulated hinged doors translates to cooler and more comfortable interiors in the summer, and a warmer home in the winter. You can choose from a range of high performance glazings, all of which will contribute to improved thermal performance in your home.
Learn more about energy efficiency windows and doors.
Durability and Security
Rylock’s durable aluminium hinged doors are built to withstand harsh Australian weather conditions. Robust materials resist warping, cracking and corrosion, ensuring greater longevity.
Enhanced security features include a multi-point locking system and extruded product frames, giving you peace of mind and making Rylock’s secure double hinged doors an excellent investment.
Improved Ventilation and Natural Light
Hinged glass doors are ideal for bringing fresh air and light into your living spaces.
The design creates a seamless connection between indoor and outdoor areas. Open your hinged glass doors for ventilation or keep them closed to keep out the elements but not the sunlight.
Why Choose Rylock’s Hinged Doors?
With over 40 years of experience, Rylock is a leading hinged door manufacturer.
As hinged door specialists, our commitment to quality and innovation ensures every door is precision-engineered to match your preferred aesthetic and space requirements.
Home owners, builders and architectural designers choose Rylock because we offer:
Customisation
From frame colours to glazing and hardware, every element of your hinged doors can be customised to your preferences.
Expertise
Our team specialises in hinged doors, offering guidance and support throughout the design and installation process.
Australian-Made products
All Rylock products are manufactured locally, ensuring exceptional quality and fast fabrication times.
Learn more about Rylock’s Australian made and owned company history.
Why Choose Double Glazed Hinged Doors?
A glass door brings light into your home, while double glazing reduces noise from the outside environment.
Aluminium double glazed hinged doors give you the benefit of:
Improved temperature control
Rylock’s energy-efficient double glazed doors reduce air conditioning costs because they minimise heat transfer. This ensures a comfortable indoor temperature year-round, helping you reduce your carbon footprint.
Noise reduction
Rylock’s high performance double glazed doors significantly reduce external ambient noise, to create a peaceful sanctuary inside your home.
Security and durability
Double glazed hinged doors are precision-engineered from quality high performance, Low-E double glazing and thermally improved aluminium frames. They offer enhanced security features, making them resistant to break-ins as well as wear and tear.
