Grade A Safety Glass for Windows and Doors

Overview

Max Lite Window

COMMERCIAL SERIES – 125mm FRAME

Max Lite Windows introduce sunlight and landscapes at maximum sizes to provide an exceptional architectural feature.

Technical Specifications

Max Product Height

6000mm ⁽¹⁾

Max Product Width

6000mm ⁽¹⁾

Glazing Capacity

32mm - 36.76mm

Wind Rating

N1 - N3

Air Infiltration

0.1 L/s.m²

Water Resistance

600 Pa

⁽¹⁾ Sash / panel height and width are relative measures and must comply with maximum area and mass limitations.

Uw Value

2.0 ⁽²⁾

SHGCw Value

0.21 - 0.53 ⁽²⁾

⁽²⁾ Energy results are product and size specific. As product sizes reduce, energy values increase and are determined by the low-e double glazing solutions specified for your project. Visit rylock.com.au/resources/wers-results/ for information.

Bushfire Solution

Bushfire solutions are specified when a site has a mandated BAL rating (up to and including BAL 40) to meet the requirements of AS3959.

Noise Solution

Noise solutions are available in specialist glazings or as a secondary glazing system to help minimise the entry of intrusive noise into the home.

Security Solutions

Rylock security and barrier screen solutions can be fitted to Rylock products to help keep your home safe and aid in fall prevention.

Information Sheet

Max Lite Windows are endlessly customisable, offering stunning architectural designs and outstanding features.

Rylock Commercial Series Max Lite Windows are endlessly customisable to enhance a home’s architectural style. They are available with a maximum area of 7.5m², as custom raked head (3, 4 or 5-sided configurations), or butt joint windows and can be coupled to other Commercial Series products with a 125mm depth, to suit your project’s individual requirements. Max Lite Windows are glazed in accordance with Australian Standards AS 1288 Glass in Buildings and whilst a large range of options are available, all products are glazed with Grade A Safety Toughened Low-e Double Glazing (Argon Fill) as a standard specification.

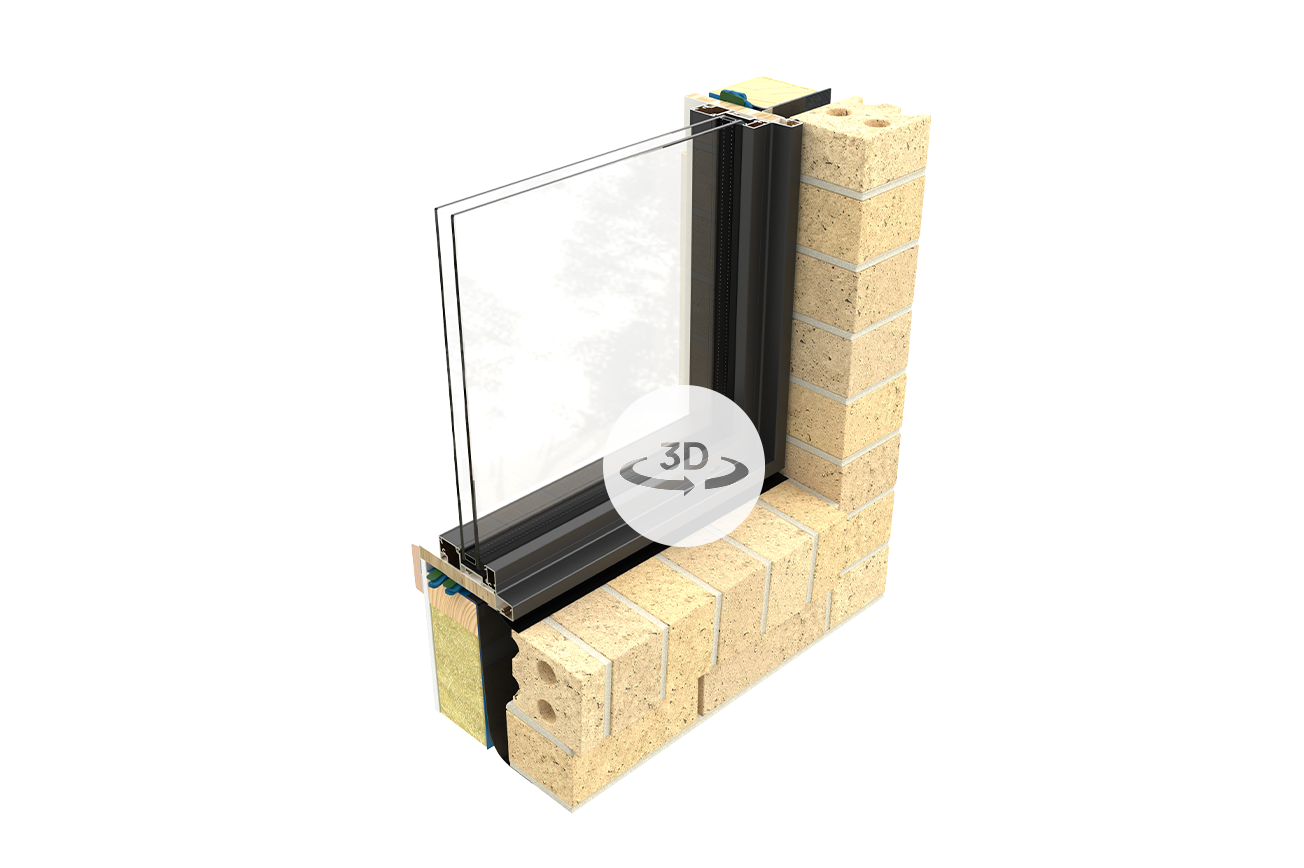

Rylock Commercial Series Max Lite Fixing

VERSATILE BUILDING-IN OPTIONS

Concealed Fixing Pocket allows the window to be secured via the temporary removal of a product infill.

Rylock Commercial Series Max Lite Coupling

DIVERSE DESIGN SOLUTIONS

The Commercial Series Coupling Bar allows multiple products with a 125mm depth to be joined.

ENDLESSLY CUSTOM CONFIGURATIONS

Custom Raked Head windows in 3, 4 or 5-sided configurations enhance the home’s architectural style.

HIGH PERFORMANCE DOUBLE GLAZING

IGU standard specification is Grade A Safety Toughened Low-e Double Glazing (Argon Fill).

INSTALLATION GUIDE

The most vital aspect of correct function – is correct installation.

It is recommended that the manufacturer’s specification is always followed as improper installation can lead to air infiltration, moisture and poor overall performance.

Rylock has detailed Typical Building-In Details for four common wall types to assist in the best practice installation of product:

Linea Board
Hebel PowerPanel
Brick Veneer; and
Double Brick

INSTALLATION guide

Reveal Type & Depth

A product’s reveal type and depth can be customised to suit various building materials, to achieve a particular architectural style and deliver ultimate customisation.

PRIMED TIMBER REVEAL

A pre-primed in-line timber reveal for ease of installation is ready for painting. Architrave supplied by other

HARDWOOD REVEAL

Select grade Hardwood in-line timber reveal for ease of installation is ready to varnish. Architrave supplied by other

PLASTER REVEAL OFFSET

Common in modern housing construction, products are fitted with a 1.6mm spacer for installation of the EzyReveal™ system.

REVEAL EQUALISER

A versatile solution with concealed fixing pocket in powder coated finish to the internal surface of the frame.

TECHNICAL DOWNLOADS

Rylock invests significant resources in creating technical documents for all products.

Download .dwg and .pdf file format Cross-Section documents for the Commercial Series Max Lite Window, below:

X-SECTION DRAWING | MAX LITE WINDOW – COMMERCIAL SERIES 125mm [PDF]

INSTALLATION GUIDE | MAX LITE WINDOW – COMMERCIAL SERIES 125mm

colours and textures powder coat selection

Frame Colours & Textures

30 standard colours and textures, powder coated in-house for quality control and tested by the CSIRO.

Silvertop House – Project Feature

Silvertop House is perched in the treetops of Melbourne’s leafy north-east suburbs.

Site Activities

Rylock offers comprehensive site glazing and site service capability, supported by trained professionals.

Max Lite Windows | Modern Glass Floor-to-Ceiling Windows by Rylock

Fill your home with natural light while making a stunning architectural statement.

Rylock’s Max Lite Windows are more than a design feature; they transform your living spaces, creating a seamless connection between the indoors and outdoors while enhancing your home’s aesthetic appeal at the very largest of sizes.

Discover the Benefits of Ceiling-to-Floor Windows

Rylock’s modern floor-to-ceiling windows redefine elegance and functionality, drawing natural light and panoramic outdoor views into your home.

Key benefits include:

Maximised Natural Light

These glass floor-to-ceiling windows flood your home with light, reducing your reliance on artificial lighting and creating a warm, inviting atmosphere.

Panoramic Views

Enjoy uninterrupted, expansive views of your surroundings, whether it’s a cityscape or a lush garden.

Energy Efficiency

Max Lite Windows are specified with Grade A Safety high performance low-e double glazing to offer exceptional thermal insulation that will keep your home more comfortable throughout the year and help reduce energy costs.

Architectural Elegance

With sleek aluminium frames and precision-engineered finishes, these windows complement any modern or contemporary design aesthetic.

Noise Reduction

The advanced glazing technology helps reduce external ambient noise, promoting a peaceful living environment.

With Rylock’s custom window options, you can design double glazed floor-to-ceiling windows that meet your functional requirements and turn your home into a landmark.

Discover more about Rylock’s Double Glazed Windows.

Customisation Options for Floor-to-Ceiling Windows

What’s your vision for your home?

Rylock Max Lite Windows are fully customisable, allowing you to tailor the design, size, and finish to perfectly suit your space.

Customisation Features:

Size Flexibility

Max Lite Windows are designed to make a bold statement at the largest of sizes, with heights up to 6m and custom widths to meet your architectural needs. We custom make your windows, whether you want a single expansive pane or a series of elegant panels.

Configuration Options

Choose from innovative designs like raked heads and butt joint windows to achieve a striking architectural finish.

Frame Finishes

Our aluminium floor to ceiling windows are available in 30 standard powder coat colours and textures, offering timeless style and superior weather resistance.

Glazing Choices

Select from a range of high performance and ultra high performance low-e double glazing solutions for enhanced energy efficiency and noise reduction.

With Rylock’s customisation options, you can design glass floor-to-ceiling windows that meet your functional requirements and elevate your home’s overall aesthetic.

Technical Specifications of Max Lite Windows

Rylock’s Max Lite Windows are precision-engineered to provide exceptional thermal performance and longevity.

Technical details include the following:

Maximum Dimensions: Heights up to 6 metres, with widths subject to area and mass limitations.
Glazing Capacity: Designed to accommodate glazing thicknesses ranging from 32mm to 36.76mm.
Performance Ratings:
- Wind Rating: Suitable for wind classifications N1 to N3.
- Air Infiltration: Rated at an impressive 0.1 L/s.m² for superior sealing.
- Water Resistance: Handles up to 600 Pa, ensuring durability in the harshest of weather conditions.
Energy Efficiency: The Max Lite Window has been verified by the Window Energy Rating Scheme (WERS).

Every Max Lite Window is rigorously tested to deliver cutting-edge performance, combining style with practicality.

Installation and Maintenance

Proper installation and regular maintenance are essential to ensure your floor-to-ceiling windows perform optimally for years to come. Rylock offers comprehensive guidance to help you get the most out of your investment.

Installation Tips:

Professional Installation: We recommend you work with Rylock-approved installers who are trained to handle large-scale glass installations (often a crane will be required for this size panel installation) and follow our installation guides. This will ensure a precise fit and proper sealing to maximise energy efficiency and compliance with the National Construction Code (NCC).
Structural Integrity: Ensure the installation is supported by a robust framework to accommodate the weight and dimensions of these expansive windows.
Compliance with Standards: Our team ensures that your windows meet all relevant Australian safety and energy standards.

Maintenance Advice:

Frame Care: Clean aluminium frames with a mild detergent and soft cloth to maintain their finish and prevent build-up.
Glazing Maintenance: Use non-abrasive cleaners to keep your glass panels clear and free from streaks.
Seal Inspections: Periodically check seals and gaskets for wear and tear, replacing them as necessary to preserve insulation and prevent air or water leaks.

By following these simple steps, you can maintain the elegance and functionality of your modern floor-to-ceiling windows for decades.

Read our guide to caring for your windows.

Experience quality, style and performance at your nearest showroom.

Enhance your home with Rylock’s expertly crafted double glazed windows and doors, designed for superior thermal comfort, noise reduction and security.

Showrooms

Frequently Asked Questions

Are floor-to-ceiling windows energy-efficient?

Rylock’s double glazed floor-to-ceiling windows are functional as well as aesthetically impressive. They are designed to provide excellent thermal insulation, reducing heat transfer and lowering energy costs. The high performance low-e double glazing technology ensures your home stays warmer in winter and cooler in summer.

What safety measures are in place for large glass installations?

Rylock’s Max Lite Windows are built with safety in mind. The robust aluminium frames and durable glazing options exceed Australian standards, ensuring stability and impact resistance.

We recommend you connect with a professional installer who follows our installation guide to ensure safe installation.

Can floor-to-ceiling windows be customised to suit my home’s design?

Absolutely. Our glass floor-to-ceiling windows are fully customisable, allowing you to choose the size, frame finish, glazing type and configuration that best suits your home’s architectural style.

Do Max Lite Windows reduce noise from outside?

Yes, the advanced double glazing and optional acoustic glazing significantly reduce external noise, making your home a peaceful retreat from the outside environment.

What are the cleaning and maintenance requirements for Max Lite Windows?

Cleaning is simple: wipe down the aluminium frames with a mild detergent and clean the glass panels with a soft cloth and glass cleaner. Regular inspections of seals will ensure continued energy efficiency and durability.

Why Choose Rylock for Floor-to-Ceiling Windows?

With over 40 years of experience, Rylock is a trusted leader in the design and manufacture of high performance windows and doors in Australia. When you choose our Max Lite Windows, you benefit from:

Expert Craftsmanship: Our proprietary solutions are designed and manufactured to the highest standards in Australia with materials that are from a local supply chain.
Customised Solutions: Tailored options to meet your specific aesthetic and functional requirements.
Energy Efficiency: Cutting-edge glazing technology ensures your windows perform beautifully in any climate.
Unmatched Customer Support: From consultation to installation, our team is here to guide you every step of the way.

Looking to upgrade your home or complete your next architectural project with Rylock’s Max Lite Windows? Contact us today or explore our Product Range for more options.
