Overview
Casement Window
THERMALLY BROKEN
COMMERCIAL SERIES – 125mm FRAME
Casement Windows deliver cooling breezes into the home and promote cross-flow ventilation for a comfortable living environment.
Technical Specifications
Casement Windows are endlessly customisable, offering stunning architectural designs and outstanding features.
Casement Windows offer precise control of the sash opening through the superior dual arm scissor action of the Truth™ Bar Operator (available in black, silver and white hardware) with key lock. The stainless steel stays ensure the sash can be opened to a specific angle to draw cross breezes into the home for exceptional ventilation. Dual sash seals and adjustable snubbers ensure resistance against air and water infiltration for exceptional results in AS 2047 Windows and External Glazed Doors compliance testing.
Casement Windows are glazed in accordance with AS 1288 Glass in Buildings and whilst a large range of options are available, all products are glazed with Grade A Safety Toughened Low-e Double Glazing (Argon Fill) as a standard specification. Extruded flyscreens are a standard inclusion and fitted to the interior frame of the product which is powder coated in-house from a selection of 30 standard colours and textures; tested by the CSIRO for durability.
EXCEPTIONAL STRENGTH AND DURABILITY
Stainless Steel Stays control sash movement and Dual Sash Seals minimise water and air infiltration.
DIVERSE DESIGN SOLUTIONS
A range of Structural Members to suit your individual product and project site requirements.
EXTRUDED FLYSCREEN WITH CORNER STAKE
Standard inclusion Extruded Flyscreens with various mesh options feature a hidden Corner Stake.
HIGH PERFORMANCE DOUBLE GLAZING
IGU standard specification is Grade A Safety Toughened Low-e Double Glazing (Argon Fill).
INSTALLATION GUIDE
The most vital aspect of correct function – is correct installation.
It is recommended that the manufacturer’s specification is always followed as improper installation can lead to air infiltration, moisture and poor overall performance.

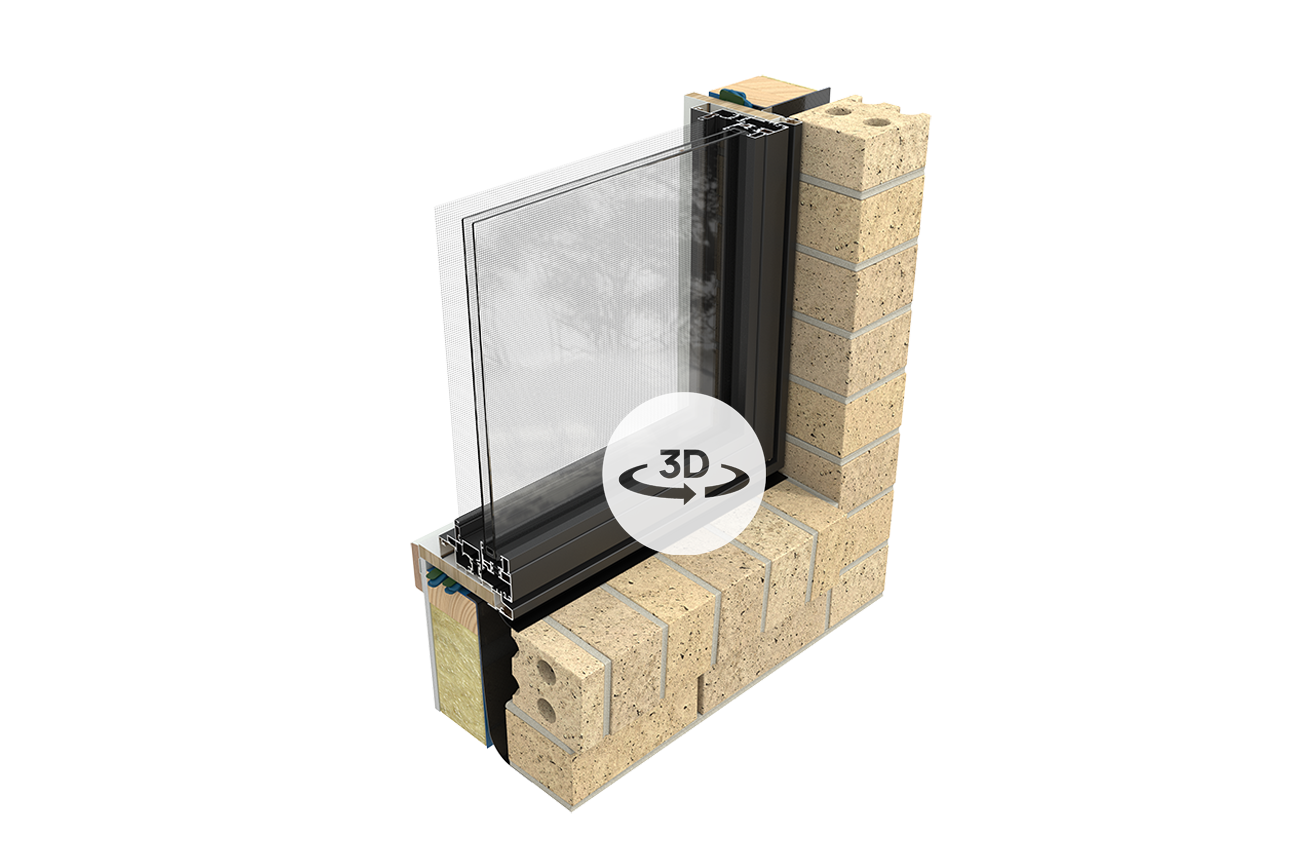

Rylock has detailed Typical Building-In Details for four common wall types to assist in the best practice installation of product:
- Linea Board
- Hebel PowerPanel
- Brick Veneer; and
- Double Brick
Reveal Type & Depth
A product’s reveal type and depth can be customised to suit various building materials, to achieve a particular architectural style and deliver ultimate customisation.
PRIMED TIMBER REVEAL
A pre-primed in-line timber reveal for ease of installation is ready for painting. Architrave supplied by other
HARDWOOD REVEAL
Select grade Hardwood in-line timber reveal for ease of installation is ready to varnish. Architrave supplied by other
PLASTER REVEAL OFFSET
Common in modern housing construction, products are fitted with a 1.6mm spacer for installation of the EzyReveal™ system.
REVEAL EQUALISER
A versatile solution with concealed fixing pocket in powder coated finish to the internal surface of the frame.
TECHNICAL DOWNLOADS
Rylock invests significant resources in creating technical documents for all products.
Download .dwg and .pdf file format Cross-Section documents for the Commercial Series Casement Window, below:
