Overview
Fixed Lite Window
THERMALLY BROKEN
COMMERCIAL SERIES – 125mm FRAME
Fixed Lite Windows introduce sunlight and landscapes into the home, offering endlessly customisable designs for traditional, contemporary and cutting edge projects.
Technical Specifications
Fixed Lite Windows are endlessly customisable, offering stunning architectural designs and outstanding features.
Fixed Lite Windows are endlessly customisable to enhance a home’s architectural style. They are available with a maximum area of 6m², as custom raked head (3, 4 or 5-sided configurations), or butt joint windows. Rylock offers a range of structural members, and Fixed Lite Windows can also be coupled to other Commercial Series products to deliver custom configurations for your project’s individual requirements. Fixed Lite Windows are glazed in accordance with Australian Standards AS 1288 Glass in Buildings and whilst a large range of options are available, all products are glazed with Grade A Safety Toughened Low-e Double Glazing (Argon Fill) as a standard specification.
ENDLESSLY CUSTOM CONFIGURATIONS
Custom Raked Head windows in 3, 4 or 5-sided configurations enhance a home’s architectural style.
HIGH PERFORMANCE DOUBLE GLAZING
IGU standard specification is Grade A Safety Toughened Low-e Double Glazing (Argon Fill).
DIVERSE DESIGN SOLUTIONS
A range of Structural Members to suit your individual product and project site requirements.
VERSATILE BUILDING-IN OPTIONS
Concealed Fixing Pocket allows the window to be secured via the temporary removal of a product infill.
INSTALLATION GUIDE
The most vital aspect of correct function – is correct installation.
It is recommended that the manufacturer’s specification is always followed as improper installation can lead to air infiltration, moisture and poor overall performance.

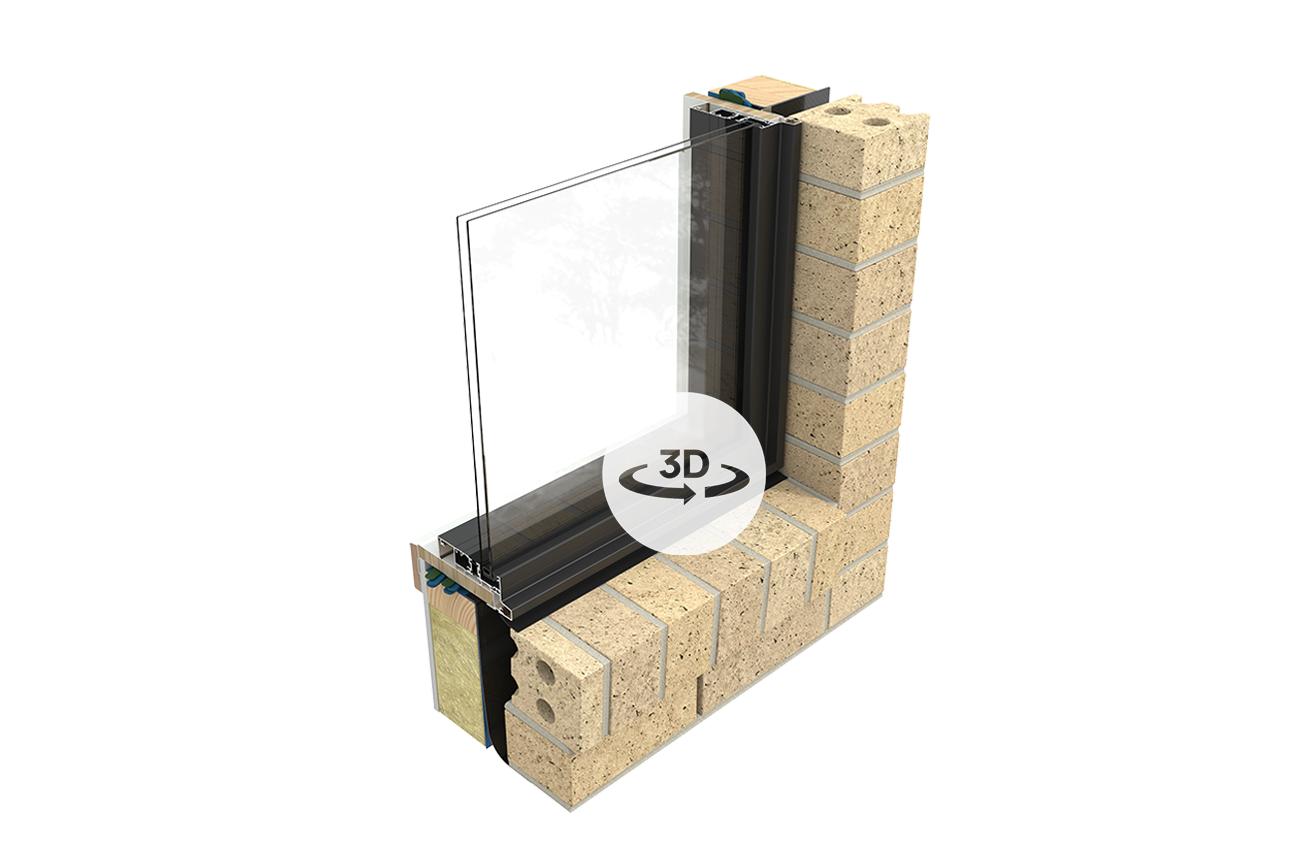

Rylock has detailed Typical Building-In Details for four common wall types to assist in the best practice installation of product:
- Linea Board
- Hebel PowerPanel
- Brick Veneer; and
- Double Brick
Reveal Type & Depth
A product’s reveal type and depth can be customised to suit various building materials, to achieve a particular architectural style and deliver ultimate customisation.
PRIMED TIMBER REVEAL
A pre-primed in-line timber reveal for ease of installation is ready for painting. Architrave supplied by other
HARDWOOD REVEAL
Select grade Hardwood in-line timber reveal for ease of installation is ready to varnish. Architrave supplied by other
PLASTER REVEAL OFFSET
Common in modern housing construction, products are fitted with a 1.6mm spacer for installation of the EzyReveal™ system.
REVEAL EQUALISER
A versatile solution with concealed fixing pocket in powder coated finish to the internal surface of the frame.
TECHNICAL DOWNLOADS
Rylock invests significant resources into creating technical documents for all products.
Download .dwg and .pdf file format cross-section documents for the Thermally Broken Commercial Series Fixed Lite Window, and navigate to the Specify Rylock and product installation guide below:
